IMAGE SENSOR

Type

36 x 24 mm Full Frame back-illuminated stacked CMOS sensor

Effective Pixels

Approx. 24.2 megapixels

Total Pixels

Approx. 26.7 megapixels

Aspect Ratio

3:2

Low-Pass Filter

Built-in/Fixed

Sensor Cleaning

EOS integrated cleaning system

Colour Filter Type

RGB Primary Colour

Sensor Shift-IS

Yes, up to 8.5-Stops advantage at the center and 7.5-stops peripheral depending on the lens used1

IMAGE PROCESSOR

Type

DIGIC Accelerator and DIGIC X

LENS

Lens Mount

RF/RF-S (EF and EF-S lenses can be attached using EF TO EOS R ADAPTER, EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER, EF-M lenses not compatible)

Focal Length

Equivalent to 1.0x the focal length of the lens with RF and EF lenses, 1.6x with EF-S and RF-S lenses.

Image Stabilisation

FOCUSING

Type

Dual Pixel Intelligent AF

AF System/Points

Cross-type AF2 with area 100% horizontal and 100% vertical possible depending on the lens attached.

AF Working Range

EV -7.5 –21 (at 23°C & ISO100)3

AF Modes

One Shot

Servo AF

AF Point Selection

Automatic selection: 1053 (975 Movies) Available AF areas when automatically selected

Manual selection: Spot AF

Manual selection: 1-point AF (AF frame size can be changed) 4368 AF positions available stills (3354 Movies)

Manual selection: AF point Expansion 4 points (up, down, left, right)

Manual selection: AF point Expansion surrounding

Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones, where the width and height is also adjustable)

Manual selection: Whole area AF

Manual selection: Spot AF (Whole area tracking servo AF OFF)

Manual selection: 1-point AF (Whole area tracking servo AF OFF)

Manual selection: AF point Expansion 4 points (up, down, left, right) (Whole area tracking servo AF OFF)

Manual selection: AF point Expansion surrounding (Whole area tracking servo AF OFF)

AF Tracking

Humans (Eyes, Face, Head, Upper half of body, Body), Animals (Dogs, Cats, Birds and Horses) or Vehicles (Racing cars or Motor bikes, Airplanes and Trains), Register People Priority (up to 10 x 10 registered people), Action Priority4 (Football, Basketball, Volleyball)

Supported actions:

- Football: Shoot, header, short pass, long pass, dribble, clear, place kick, save by keeper, throw in, sliding tackle

- Basketball: Shoot, rebound, pass, dribble, free throw, jump ball

- Volleyball: Spike, toss, receive, serve

AF Lock

Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo 5

AF Assist Beam

Emitted by built in LED or optional dedicated Speedlite (flash)

Manual Focus

Selected on lens

EXPOSURE CONTROL

Metering Modes

Real-time with image sensor, 6144-zone metering.

(1) Evaluative metering (linked to All AF points)

(2) Partial metering (Approx. 10% of screen at centre)

(3) Spot metering: Centre spot metering (Approx. 5% screen at centre) AF point-linked spot metering not provided

(4) Centre weighted average metering

Metering Brightness Range

EV -3 – 20 (at 23°C, ISO100, with evaluative metering)

AE Lock

Auto: AE lock takes effect when focus is achieved

Manual: By AE lock button in P, Av, Fv, Tv and M modes

Exposure Compensation

+/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)

AEB

+/-3 EV in 1/3 or 1/2 stop increments

Anti-Flicker Shooting

Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease available with both electronic and mechanical shutter

High Frequency anti flicker shooting for M and TV modes

Electronic 1st-curtain: 1/50.0 to 1/2048.0 sec.

Electronic shutter: 1/50.0 to 1/8192.0 sec.

Movie recording: 1/50.0 to 1/8192.0 sec. (NTSC/PAL)

Maximum continuous shooting speed may decrease.

ISO Sensitivity

Auto 100-102400 (in 1/3-stop or whole stop increments)

ISO can be expanded to L:50, H1:204800, H2:4096006

SHUTTER

Type

Electronically controlled focal-plane shutter and Electronic shutter function in sensor

Speed

Mechanical / Electronic 1st-curtain: 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb

Electronic: 30-1/64000 (1/2 or 1/3 stop increments up to 1/16000 then 1 stop until 1/64000), Bulb

(Total shutter speed range. Available range varies by shooting mode)

Shutter Release

Soft touch electromagnetic release

WHITE BALANCE

Type

Auto white balance with the imaging sensor supported by deep learning technology

AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting

Settings

White balance compensation:

1. Blue/Amber +/-9

2. Magenta/Green +/-9

Custom White Balance

Yes, 5 setting can be registered

WB Bracketing

'+/-3 levels in single level increments

3, 2, 5 or 7 bracketed images per shutter release

Selectable Blue/Amber bias or Magenta/Green bias

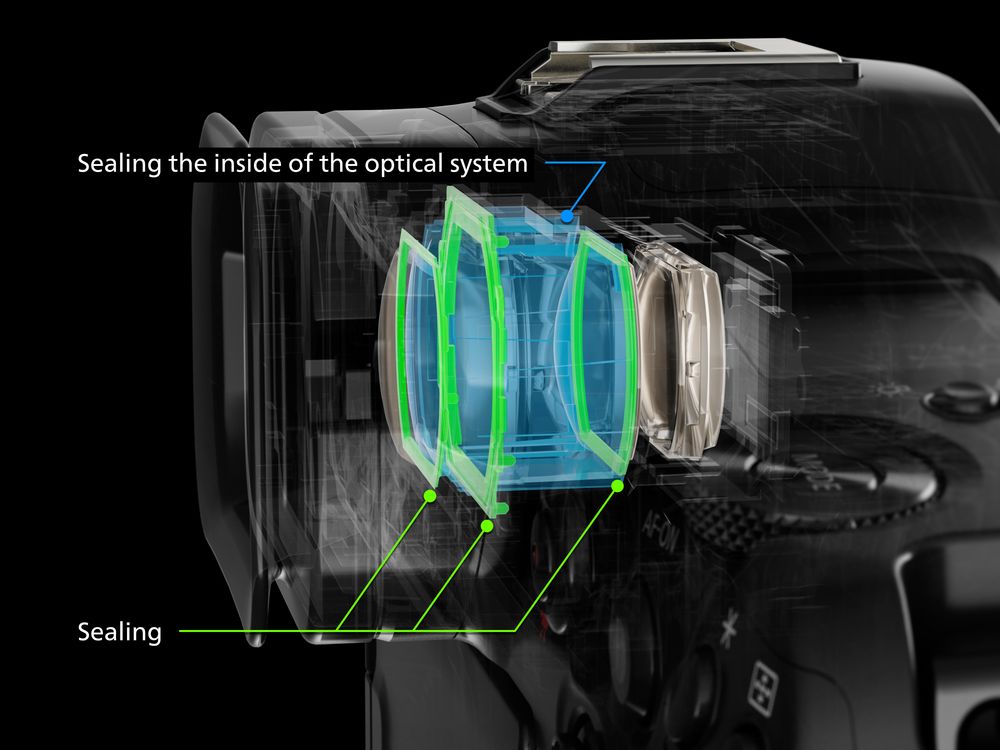

VIEWFINDER

Type

0.64-inch OLED colour EVF

Dot Count

9.44 million dots (2048x1536)

Coverage (Vertical/Horizontal)

Approx. 100%

Magnification

Adjustable Standard: Approx. 0.9x7 / Reduce 1: Approx. 0.8x/ Reduce 2: Approx. 0.7x

Eyepoint

Approx. 25mm (from eyepiece lens centre)

Dioptre Correction

-4 to +2 m-1 (dioptre)

Display performance

Power saving: 59.94 fps Smooth 119.98 fps , suppress low frame rate 60 -119.8fps8 (7 level of brightness)

Viewfinder Information

AF point information, Eye Control pointer, Exposure level indicator, Shooting mode, ISO speed, Shutter speed, Aperture, Number of remaining multiple exposures, Exposure compensation, HDR shooting, Highlight tone priority, Multiple-exposure shooting, Multi Shot Noise Reduction, Number of self-timer shooting, Digital Lens Optimizer, Maximum burst, AF method, Battery level, Battery level (%) display, Card free space (%) display, AF operation, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still photo cropping, Aspect ratio, Auto Lighting Optimizer, AE lock, Picture Style, Flash-ready, White balance, Flash off, White balance correction, FE lock, Image Quality, High-speed sync, Bluetooth function, Wi-Fi function, Multi-function lock warning, Histogram, Electronic level, Lens information, focus distance scale, vertical exposure scale, Grid, Time

Depth of Field Preview

Yes, via customised button

Eyepiece Shutter

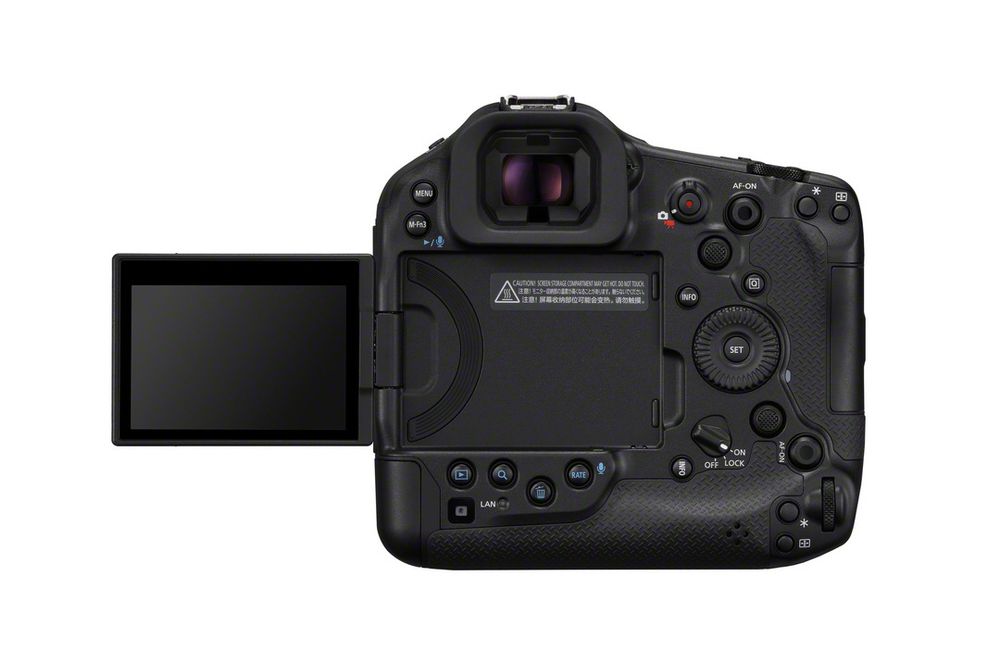

LCD MONITOR

Type

8.0 cm (3.2") TFT colour LCD, Approx. 2.1 million dots

Coverage

Approx. 100%

Viewing Angle Horizontally/Vertically

Approx. 170° vertically and horizontally

Coating

Anti-smudge.

Brightness Adjustment

Manual: Adjustable to one of seven levels

Colour Tone Adjustment: 4 settings

Touch-Screen Operations

Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.

Display Options

(1) Basic Camera settings

(2) Advance Camera settings

(3) Camera settings plus histogram and dual level display

(4) No info

(5) Quick Control Screen

(6) Display off

FLASH

Built-in Flash GN (ISO 100, meters)

Built-in Flash Coverage

Built-in Flash Recycle Time

Modes

E-TTL II Auto Flash, Metered Manual

Red-Eye Reduction

X-Sync

When [Cropping/aspect ratio: Full-frame/1:1/4:3/16:9] is set: 1/200 sec mechanical shutter / 1/320 electronic 1st curtain, 1/400 sec Electronic shutter

When [Cropping/aspect ratio: 1.6x (crop)] is set: 1/250 sec mechanical shutter / 1/400 electronic 1st curtain, 1/500 sec Electronic shutter9

Flash Exposure Compensation

'+/- 3EV in 1/3 increments with EX and EL series Speedlite flashes

Flash Exposure Bracketing

Yes, with compatible External Flash

Flash Exposure Lock

Yes

Second Curtain Synchronisation

Yes, via Speedlite

Multi-Function shoe/Hot Shoe/PC Terminal

Yes/Yes/Yes

External Flash Compatibility

E-TTL II with EX/EL series Speedlite, wireless multi-flash support

External Flash Control

via camera menu screen

SHOOTING

Modes

Stills; Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)

Movie: Program AE, Shutter priority AE, Aperture priority AE, Manual, and Custom (x3)

Picture Styles

Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

Colour Space

SDR: sRGB and Adobe RGB HDR PQ: BT.2020

Highlight Tone Priority (3 settings)

Auto Lighting Optimizer (4 settings)

Long exposure noise reduction

Clarity

High ISO speed noise reduction (4 settings) (still and video)

Lens optical correction:

- Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only)

- Focus breathing correction(during video only)

- Diffraction correction,

- Digital Lens Optimizer (during/after still photo shooting)

Image Processing

Resize to M, S1, S2

Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)

Cropping of images

- Switch between vertical and horizontal cropping orientation

- Image straightening

- Cropping frame can be moved using touch screen operation

- Neural Network Upscaling

RAW image processing

Neural Network Noise Reduction

Multiple exposure

HDR

HEIF to Jpeg conversion (inc Batch conversion)

Focus Bracketing and in camera composition

Drive Modes

Single, Continuous High+, Continuous High, Continuous Low, Customisable Continuous shooting speeds, Self-timer (2s+remote, 10s+remote, continuous)

Continuous Shooting

Max. Approx. 12 fps. with Mechanical shutter/1st curtain electronic speed maintained for 1000+ JPEG or 1000+ RAW images or 40 FPS with electronic shutter speed maintained for 500 JPEG or 230 RAW images10.

Custom Continuous shooting speed with Electronic shutter selectable options 40 / 30 / 20 / 15 / 12 / 10 / 7.5 / 5 / 3 / 2 / 1 FPS depending on the drive mode.

Pre-Continuous shooting is possible from 20 shots before the shutter button is fully pressed when the AF is on for 20 shots or more.

Interval Timer

Built in

FILE TYPE - STILLS

Still Image Type

RAW 14 bit: RAW and C-RAW (Canon original RAW 3rd edition)

JPEG 8 bit: 10 compression options

HEIF 10 bit: 10 compression options

Complies with Exif 2.31 and Design rule for Camera File system 2.0

Complies with Digital Print Order Format [DPOF] Version 1.1

RAW+JPEG/HEIF Simultaneous Recording

Yes, any combination of RAW + JPEG or RAW + HEIF possible

Image Size

RAW/ C-RAW:

3:2 ratio 6000x4000, 1.6x (crop) 3744x2496

JPEG/ HEIF:

3:2 ratio (L) 6000x4000, (M) 3984x2656, (S1) 2976x1984, (S2) 2400x1600

1.6x (crop) (L) 3744x2496, (S2) 2400x1600

4:3 ratio (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 2112x1600

16:9 ratio (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 2400x1344

1:1 ratio (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1600x1600

In-camera Neural Network Upscaling up to 12000x8000 (96MP)11

Folders

New folders can be manually created, named and selected

Movie folder structure is adopting the XF-HEVC S / XF-AVC S format

File Numbering

(1) Consecutive numbering

(2) Auto-reset

(3) Manual reset

File Naming

Still:

Preset code Unique 4-digit character string + 4-digit file number

2 User Presets

Movie:

Adopting the XF-HEVC S / XF-AVC S format

Camera index, Reel number, Clip number, Codec type, Shooting start date, Shooting start time, Random ID, User defined 5 characters, Stream number, (Proxy)

EOS MOVIE

Movie Type

MP4 Video: 4K DCI/ UHD (17:9 / 16:9), Full HD (16:9)

4K/ Full HD: HEVC S/H.265, Audio: Linear PCM / AAC

4K/ Full HD: MPEG-4 AVC S/H.264, Audio: Linear PCM / AAC

6K RAW: 12-bit CRM Audio: Linear PCM / AAC

Movie Size

6K DCI (17:9) 6000 x 3164 (59.94, 50, 29.97, 25, 24, 23.98 fps) RAW, Light RAW

4K DCI (17:9) 4096 x 2160 (59.94, 50, 29.97, 25, 24, 23.98 fps) LGOP / High Quality intra frame / intra frame / light intra frame

4K UHD (16:9) 3840 x 2160 (119.88, 100, 59.94, 50, 29.97, 25, 23.98 fps) LGOP / High Quality intra frame / intra frame / light intra frame12

2K DCI (17:9) 2048 x 1080 (239.76, 200, 119.88, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) LGOP / intra frame

Full HD (16:9) 1920 x 1080 (239.76, 200, 119.88, 100, 59.94, 50, 29.97, 25, 23.98 fps) LGOP / intra frame

Proxy recording:

XF-AVC S YCC420 8bit 2K-DCI or Full HD (same angle of view and frame rate up to 100fps as main movie) Standard LGOP / Light LGOP

XF-HEVC S YCC420 10bit 2K-DCI or Full HD (same angle of view and frame rate up to 100fps as main movie) Standard LGOP / Light LGOP

Colour Sampling (Internal recording)

6K RAW 12bit, 4K/2K/Full HD - YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit

Canon Log

Custom Picture:

C1: Canon 709

C2: Canon Log 2

C3: Canon Log 3

C4: PQ

C5: HLG

C6: BT.709 Standard

C7 - C20: User Defined

Picture Styles: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

Movie Length

Max duration 6 hours. (excluding High Frame Rate movies). No 4 GB file limit with exFAT formatted card.13

High Frame Rate Movie

MP4 Video:

4K – DCI 4096x2160 / UHD 3840x2160 at 119.9 / 100 fps

Full HD 1920 x1080 at 239.76 / 200fps14

Frame Grab

8.8-megapixel JPEG still image frame grab from 4K DCI movie possible

8.3-megapixel JPEG still image frame grab from 4K UHD movie possible

(HEIF only possible when HDR PQ is set)15

Dual Shooting (Still & Movie):

Movie Output:

Main recording format: XF-AVC S YCC420 8bit

Movie recording size: Full HD (Normal) at 59.94p / 29.97p / 50p / 25p (LGOP)

Still Drive mode (JPEG only at the resolution of 17MP(5616×3168) and Aspect ratio: Approx. 16:9):

High speed (Max. approx. 10 shots/sec. (NTSC), Max. approx. 8.3 shots/sec. (PAL))

Low speed (Max. approx. 5.0 shots/sec. (NTSC), Max. approx. 4.1 shots/sec. (PAL))

Single shooting

Bitrate/Mbps

CRM:

6K RAW (50p): Approx. 2600 Mbps

6K RAW (29.97p): Approx. 2000 Mbps

6K RAW (25p): Approx. 1670 Mbps

6K RAW (24p/23.98p): Approx. 1600 Mbps

6K Light RAW (59.97p): Approx. 1800 Mbps

6K Light RAW (50p): Approx. 1500 Mbps

6K Light RAW (29.97p): Approx. 900 Mbps

6K Light RAW (25p): Approx. 750 Mbps

6K Light RAW (24p/23.98p): Approx. 720 Mbps

MP4:

4K DCI/UHD Fine/Normal (Oversampled from 6K/Not oversampled)

XF-HEVC S YCC422 10bit Standard LGOP

59.94p/50p: Approx. 225 Mbps

29.97p/25p/24p/23.98p: Approx. 135 Mbps

XF-HEVC S YCC420 10bit Standard LGOP

59.94p/50p: Approx. 150 Mbps

29.97p/25p/24p/23.98p: Approx. 100 Mbps

XF-AVC S YCC420 8bit Standard LGOP

59.94p/50.00p: Approx. 150 Mbps

29.97p/25p/24p/23.98p: Approx. 100 Mbps

XF-AVC S YCC422 10bit High Quality Intra

59.94p: Approx. 1200 Mbps

50p: Approx. 1000 Mbps

29.97p: Approx. 600 Mbps

25p: Approx. 500 Mbps

24p / 23.98p: Approx. 480 Mbps

XF-AVC S YCC422 10bit Standard Intra

59.94p: Approx. 900 Mbps

50p: Approx. 750 Mbps

29.97p: Approx. 450 Mbps

25p: Approx. 375 Mbps

24p / 23.98p: Approx. 360 Mbps

XF-AVC S YCC422 10bit Light Intra

59.94p: Approx. 600 Mbps

50p: Approx. 500 Mbps

29.97p: Approx. 300 Mbps

25p: Approx. 250 Mbps

24p / 23.98p: Approx. 240 Mbps

XF-AVC S YCC422 10bit Standard LGOP

59.94p/50p: Approx. 250 Mbps

29.97p/25p/24p/23.98p: Approx. 150 Mbps

4K DCI/UHD Normal (Not oversampled)

XF-HEVC S YCC422 10bit Standard LGOP

119.88p/100p: Approx. 450 Mbps

XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Standard LGOP

119.88p/100p: Approx. 300 Mbps

XF-AVC S YCC422 10bit Standard Intra

119.88p/100p: Approx. 1800/1500 Mbps

XF-AVC S YCC422 10bit Light Intra

119.88p/100p: Approx. 1200/1000 Mbps

XF-AVC S YCC422 10bit Standard LGOP

119.88p/100p: Approx. 500 Mbps

2K DCI/FullHD Fine/Normal (Oversampled from 4K/Not oversampled)

XF-HEVC S YCC422 10bit Standard LGOP

59.94p/50p/29.97p/25p/24p/23.98p: Approx. 50 Mbps

XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Standard LGOP

59.94p/50p/29.97p/25p/24p/23.98p: Approx. 35 Mbps

XF-AVC S YCC422 10bit Standard Intra

59.94p: Approx. 300 Mbps

50p: Approx. 350 Mbps

29.97p: Approx. 150 Mbps

25p: Approx. 125 Mbps

24p / 23.98p: Approx. 120 Mbps

XF-AVC S YCC422 10bit Standard LGOP

59.94p/50p/29.97p/25p/24p/23.98p: Approx. 50 Mbps

2K DCI/FullHD Normal (Not oversampled)

XF-HEVC S YCC422 10bit Standard LGOP

239.76p/200p: Approx. 200 Mbps

119.88p/100p: Approx. 100 Mbps

XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Standard LGOP

239.76p/200p: Approx. 140 Mbps

119.88p/100p: Approx. 70 Mbps

XF-AVC S YCC422 10bit Standard Intra

239.76p/200p: Approx. 1200 Mbps

119.88p/100p: Approx. 1000 Mbps

XF-AVC S YCC422 10bit Standard LGOP

239.76p/200p: Approx. 200 Mbps

119.88p/100p: Approx. 100 Mbps

Proxy Recording Bit rates:

XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Standard LGOP

59.94p/50p/29.97p/25p/24p/23.98p: Approx. 16 Mbps

XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Light LGOP

59.94p/50p/29.97p/25p/24p/23.98p: Approx. 9 Mbps

Microphone

Built-in mono microphone (48 KHz, 24 / 16-bit x 2 channels)

Audio format:

LPCM / 24 bit / 4CH

AAC / 16 bit / 2CH

Dual Card recording

Yes (including Proxy recording)

HDMI Display

Output to external monitor only (output of images and shooting information, images are recorded to the card)

Camera screen and External Monitor output (Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)16

HDMI Output

4K (DCI) 59.94p / 50.00p/29.97p /25.00p/24.00p/ 23.98p

4K (UHD) 59.94p / 50.00p/ 29.97p / 25.00p / 23.98p

Full HD 59.94p / 60i / 59.94i, 50.00p / 50.00i, 24p

480p 59.94p

576p 50p

Uncompressed YCbCr 4:2:2, 10-bit, sound output via HDMI is also possible

Focusing

Dual Pixel Intelligent AF with Eye/Face Detection and Tracking AF (people, animals and vehicles) , Movie Servo AF, Manual Focus

ISO

Auto: 100-32000, H: up to 204800 (when custom picture is off)

Manual: 100-32000, H: up to 204800 (when custom picture is off)

OTHER FEATURES

NETWORK OPTIONS

Communication functions:

- Via Wi-Fi: FTP, FTPS, SFTP, EOS Utility, image.canon, Sync time between cameras, Camera Connect, Streaming services, Content Transfer Professional, Linked shooting, Camera Control API

- Via Bluetooth: Camera Connect, BR-E1

- Via USB: EOS Utility, Camera Connect, Content Transfer Professional, Video calls/streaming (UVC/UAC)

- Via Ethernet: FTP, FTPS, SFTP, EOS Utility, Sync time between cameras, Camera Control API

Simultaneous use of communication functions:

- FTP (wireless LAN) + EOS Utility (wireless LAN)

- FTP (wired LAN) + EOS Utility (wired LAN)

- FTP (wireless LAN) + EOS Utility (USB)

- FTP (wired LAN) + EOS Utility (USB)

Custom Functions

Metadata Tag

User copyright information (can be set in camera)

Image rating (0-5 stars)

IPTC data (registered with EOS Utility)

IPTC data (via CTP app)

IPTC IIM (via CTP app)

NewsML-G2 (News Metadata) (via CTP app)

Image transfer with caption (Caption registered with EOS Utility)

Blur/Out-of-Focus image detection data17

LCD Panel/Illumination

Yes/Yes

Water/Dust Resistance

Yes18

Voice Memo

Yes

Intelligent Orientation Sensor

Yes

Playback Zoom

1.5x - 10x in 15 steps / on high resolution image (Upscaled image): 1.5x to 35x (22 levels)

Display Formats

(1) Single image

(2) Single image with information (2 levels)

Basic - Shooting information (shutter speed, aperture, ISO and Image quality)

Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information,

Brightness and RGB histogram, White balance, Picture Style, Colour space and noise reduction, Lens optical correction, GPS information, IPTC information

(3) 4 image index

(4) 9 image index

(5) 36 image index

(6) 100 image index

(7) Jump Display (1, 10 or 100 images, start of burst sequence Date, Folder, Movies, Stills, Protected images, Rating)

(8) Movie edit

(9) RAW processing

(10) Rating

Slide Show

Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating

Playback time: 1/2/3/5/10 or 20 seconds

Repeat: On/Off

Histogram

Brightness: Yes

RGB: Yes

Highlight Alert

Yes

Image Erase

Select and erase images / Select range / All images in folder / All images on card / All found images (only during image search), Images transmitted via FTP

Image Erase Protection

Erase protection of Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images / Unprotect all found images (only during image search)

Self Timer

2 or 10 sec.

Menu Categories

(1) Shooting menu

(2) AF Menu

(3) Playback menu

(4) Communication Function (Network)

(5) Function settings (Setup menu)

(6) Customize controls

(7) Custom Functions menu

(8) My Menu

Menu Languages

29 Languages

English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese

Firmware Update

Update possible by the user using Camera Connect app or EOS Utility (Camera, Lens, External Speedlite, BLE remote control, Lens adapter, Power zoom adapter, multi-function shoe compatible accessories)

INTERFACE

Computer

SuperSpeed Plus USB 3.2 Gen 2 USB Type-C® connector

Wi-Fi

Wireless LAN (IEEE 802.11ax 2×2 MIMO) (6 GHz / 5 GHz / 2.4 GHz)19, with Bluetooth 5.3 support

Other

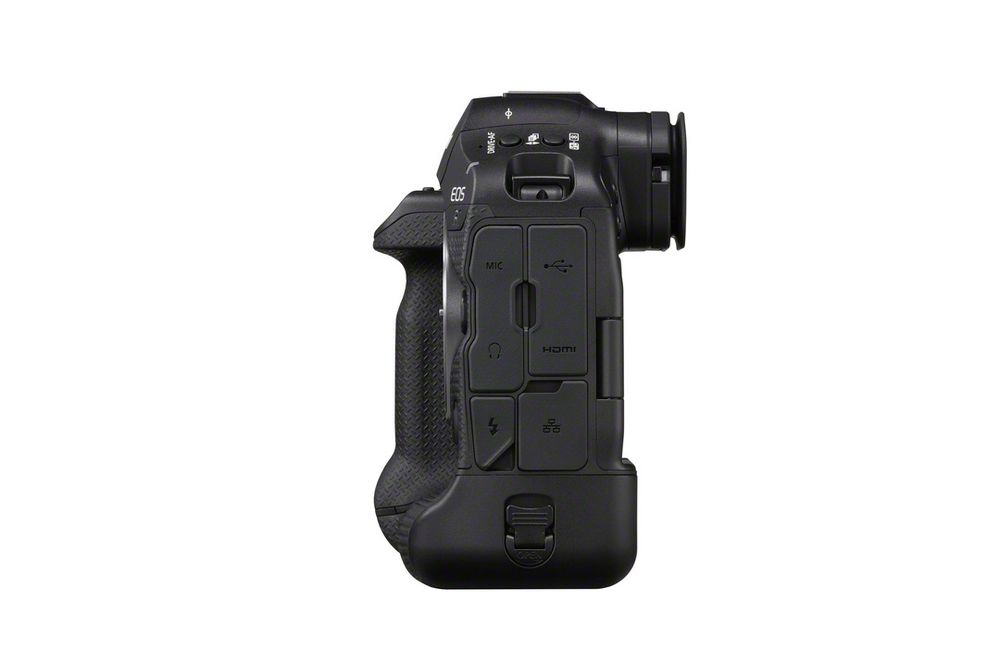

HDMI out (Type A, HDMI-CEC not supported), RJ-45 Ethernet terminal for 2.5 GBASE-T wired LAN, External Microphone In (Stereo mini jack), Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal), PC Sync terminal.

GPS:

GPS satellites (American)

GLONASS satellites (Russian)

MICHIBIKI Quasi-Zenith Satellites (Japanese)

DIRECT PRINT

Canon Printers

PictBridge

Not supported

STORAGE

Type

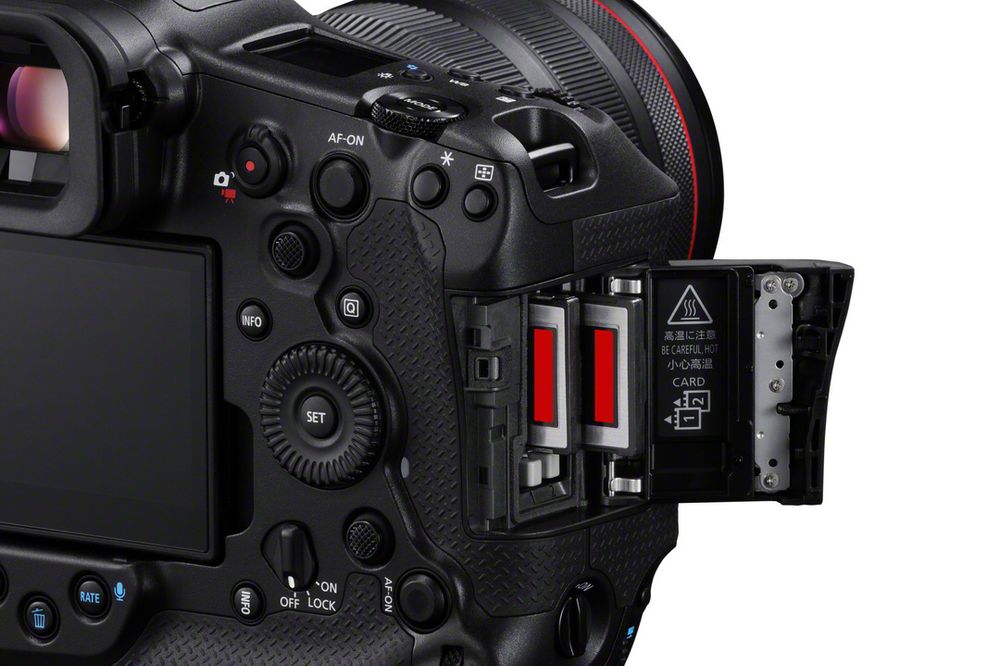

2x CFexpress type B maximum capacity 2TB (compatible with CFexpress 2.0 and VPG400)

SUPPORTED OPERATING SYSTEM

PC

Windows 10 and Windows 11 (tablet mode not supported)

Macintosh

macOS 12 / 13 /14

SOFTWARE

Image Processing

Digital Photo Professional 4.19.30 or later

Digital Photo Professional Express mobile app 1.10.20 or later (iOS only)

Other

EOS Utility 3.18.40 or later (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app 3.2.30 or later (iOS/Android), Content Transfer Professional app (iOS/Android).

POWER SOURCE

Batteries

Rechargeable Li-ion Battery LP-E19 (supplied)20

Battery Life

With LCD Approx.1330 shots (at 23°C)

With Viewfinder Approx. 700 shots (at 23°C)21

Battery Indicator

6 levels + percentage

Power Saving

Power turns off after 15 seconds, 30 seconds, 1, 3, 5, 10 or 30 mins

Power Supply & Battery Chargers

Battery charger LC-E19E (supplied), AC Adapter AC-E19 and DC Coupler DR-E19, PD-E2 USB power adapter, PD-E1 USB power adapter22

ACCESSORIES

Wireless File Transmitter

None

Cases / Straps

Lenses

All RF and RF-S lenses (EF & EF-S via Lens adapters)

Lens Adapters

EF TO EOS R ADAPTER, EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER

Flash

Canon Speedlite (EL-123, EL-5 EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 470EX-AI, 550EX, 580EX23, 580EX II23, 600EX23, 600EX-RT23, 600EX-II-RT23, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT23, Speedlite Transmitter ST-E3-RT V223, Speedlite Transmitter ST- E10)

Remote Controller/Switch

Remote Switch RS-80N3, Timer Remote Controller TC-80N3, Remote control with N3 type socket, Speedlite 600EX-II-RT. Speedlite EL-1 and BR-E1 Bluetooth remote

Other

Eyecup ER-i, Eyecup ER-iE, Multi-Function Shoe Adapter AD- E1, Multi-Function Shoe Directional Stereo Microphone DM-E1D (Mic), Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, Stereo Microphone DM-E1 / DM-E100, Tascam CA-XLR2d-C XLR microphone adapter, Rain Cover small ERC-R5S, Rain Cover large ERC-R5L, Protecting Cloth PC-E1, Hand Strap E2, Shoe cover ER-SC1, Shoe cover ER-SC2, Shoe cover ER-SC3

PHYSICAL SPECIFICATIONS

Body Materials

Magnesium Alloy body and polycarbonate with glass fibre

Operating Environment

0 – 45 °C, 85% or less humidity

Dimensions (WxHxD)

Approx. 157.6×149.5×87.3 mm24

Weight (body only)

Approx. 920 g (1115g with card and battery)
